RV Solar Panels System: Power Your Off-Grid Adventures

At Custom Way, we often receive requests to install an RV solar panels system. This solution is popular among campers and mobile businesses alike. Travelers want energy freedom, while businesses need reliable power on the go. A well-designed system provides independence, cost savings, silent operation, and eco-friendly performance. In this guide, we share our expertise to help you choose the right setup.

Choosing the right solar panels for your RV depends on your travel style and daily energy use. Weekend campers need less power, while full-time travelers require higher output. To make the right choice, focus on key factors:

• Panel type: monocrystalline panels offer 18–22% efficiency, better for limited space
• Power output: 100–200W panels suit light use, 300W+ for full setups
• Roof space: measure available area to avoid shading and overcrowding
• Durability: choose panels with tempered glass and IP65+ protection

A well-matched system will deliver stable performance and support your off-grid lifestyle.

The number of Solar Power Panels for RV depends on total power needs and panel wattage. Many RVs run on 2-4 high-output panels (300-450W each), even on larger rigs. Small campers may use 200-400W total, while RVs with fridges, AC, or work equipment often need 600-1200W or more.

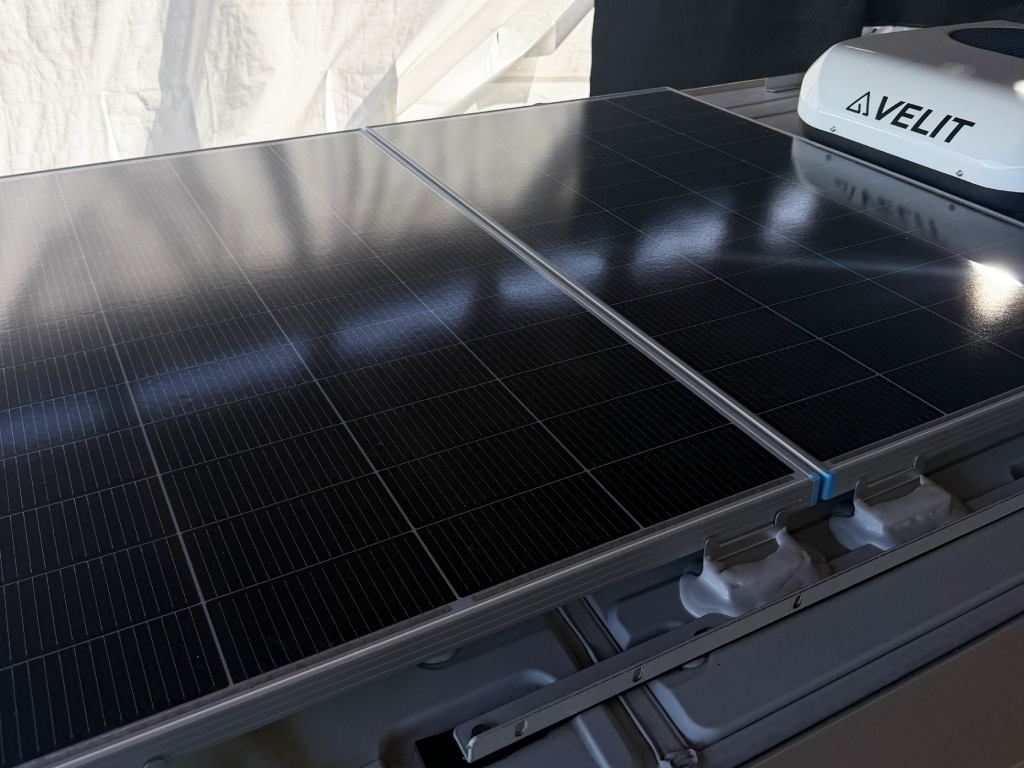

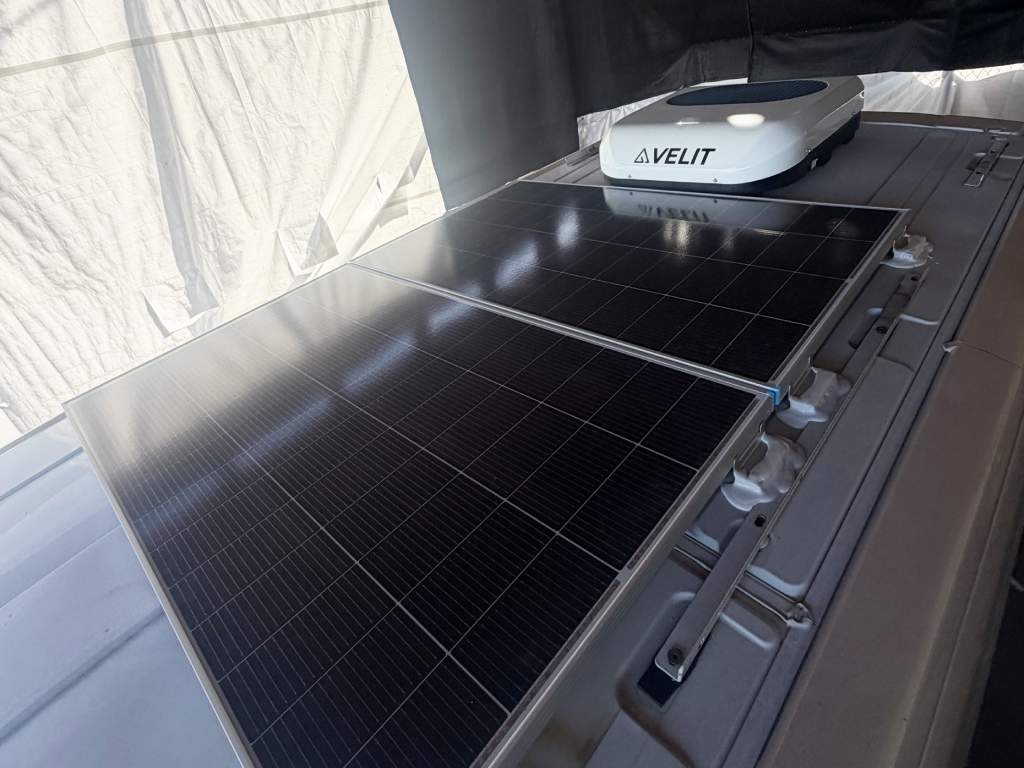

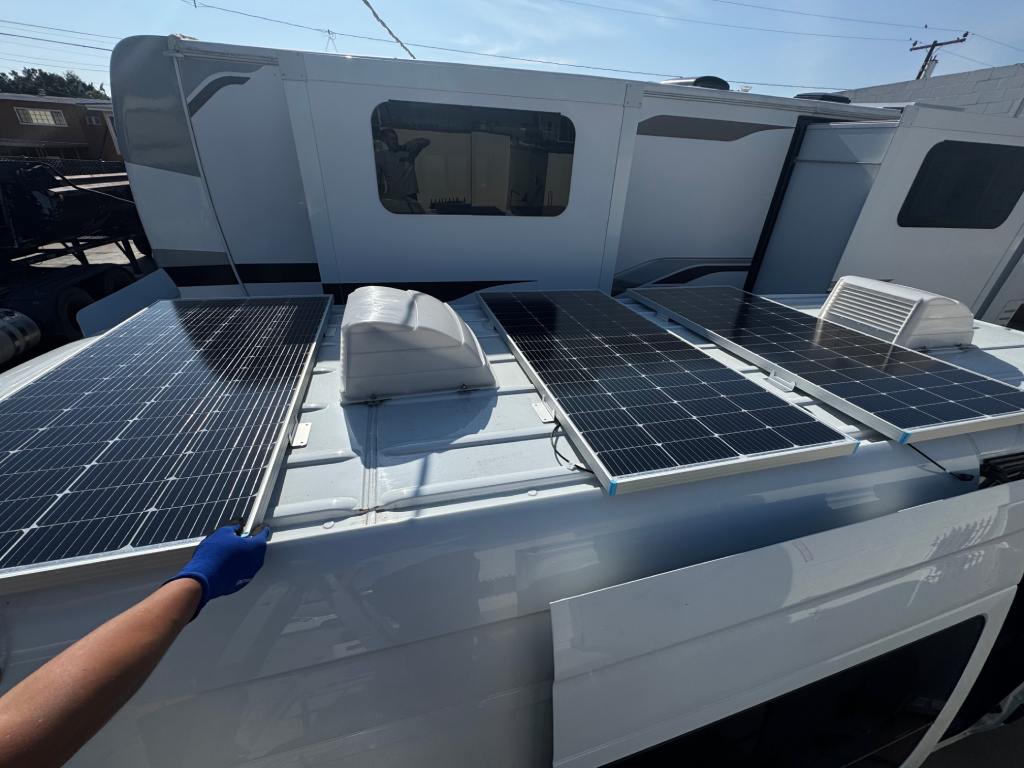

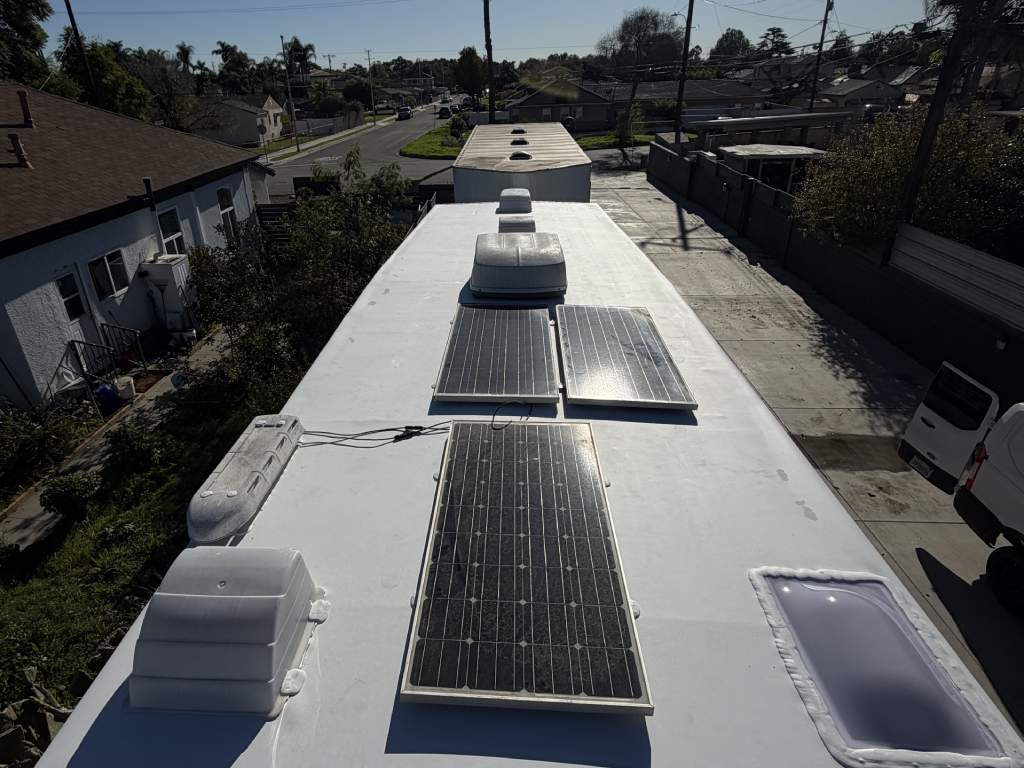

Installing RV solar panels requires careful planning and technical expertise. You need proper roof assessment, correct tilt and spacing, and secure mounting with leak protection. Wiring must include fuses, charge controllers, and safe battery connections. At Custom Way, we handle installing RV solar panels from system design to precise installation, based on real energy needs and vehicle type.

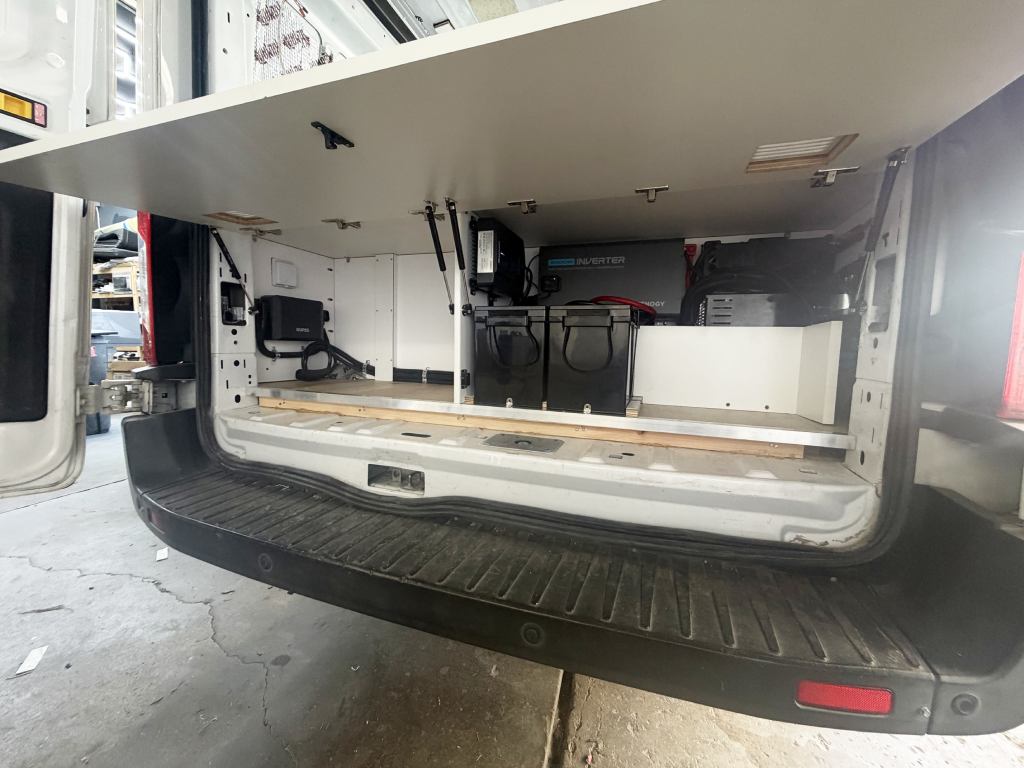

To illustrate a complete solar panels system for RV, we’re sharing a real project we completed. In our Ford Transit setup, we built a dedicated power box at the rear to protect and organize all components.

The system includes:

• Two 200Ah batteries with 400Ah total capacity
• 3000W inverter with built-in ATS
• DC-DC alternator charger
• 50A breaker, fuse, and charger box
• Main power switch for full system control

We also built the main electrical system, routed wiring throughout the van, and added shore power input, dimmable LED lighting, three interior outlets, an AC unit, and a battery monitoring system for easy control and reliable operation.

All calculations and component choices were made specifically for this van’s energy needs and consumption. We can design and install a personalized system tailored to your vehicle and requirements.

Planning off-grid RV adventures requires careful preparation. Keep these practical tips in mind:

• Calculate daily power needs for lights, fridge, AC, and devices
• Select campsites with 4–6 hours of direct sunlight for solar panels
• Carry an extra 100–200Ah battery or portable power bank
• Use energy-efficient appliances and dimmable LED lighting
• Plan routes with water refill points, dump stations, and safe overnight parking

Following these tips helps you stay powered and comfortable on every off-grid trip.

Get a perfect RV solar panels system with Custom Way. In our Artesia workshop or via mobile service across Orange, Los Angeles, Riverside, and San Bernardino Counties, we work with all models of RVs, campers, trailers, and trucks. We design systems for travelers and mobile businesses, ensuring reliable and efficient power on every vehicle.
